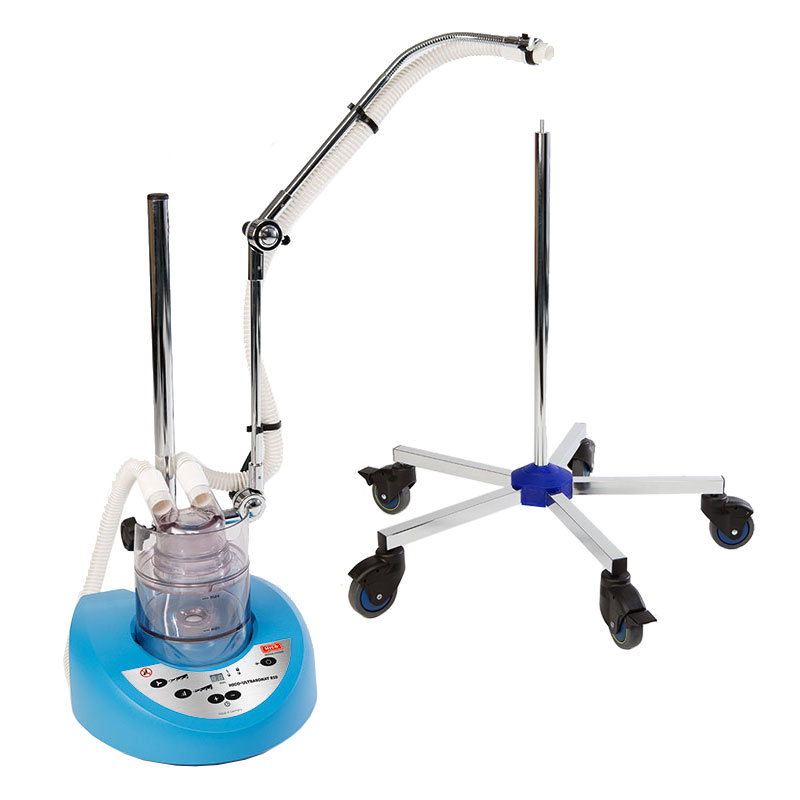

HICO-Ultrasonat 810 and accessories

The HICO-ULTRASONAT 810 table-top ultrasonic nebulizer enables sophisticated inhalation therapy in clinics, care and hospices by nebulizing water and medication.

Nebulization of tiny particles in the range 0.5 – 6.0 µm
Small amounts of medication can be nebulized
Adjustable intensity
Misting time up to 99 minutes.
Nebulization capacity up to 4.5 ml/min.
Nebulization chamber 500 ml

Technical data:

Rated voltage 230VAC 50Hz / 115VAC 60Hz / 220VAC 60Hz
Power consumption approx. 85 VA
Current consumption approx. 0.4 A – 0.8 A
Nebulization performance max. approx. 4.5 ml/min.
RF output power approx. 32 W
Oscillation frequency up to approx. 1.7 MHz
Particle size approx. 0.5 – 6 µm
Mist temperature max. 48 °C
Water temperature in the chamber max. 44 °C
Ambient temperature 10 – 30 °C
Relative humidity approx. 30 – 70%
Transport/storage temperature 3 – 60 °C
Air pressure 700 – 1060 mbar
Protection class / classification applied part (IEC60601-1) I / B
Protection class IP (IEC 60529) IP X1 (drip-proof)
Risk class (93/42/EEC) II a
Dimensions W x H x D 30 x 25 x 30 cm
Chamber volume max. 600 ml
Weight approx. 4.5 kg (standard structure)
Noise level approx. 30 dB(A)
UMDNS code 15-783

Optional:

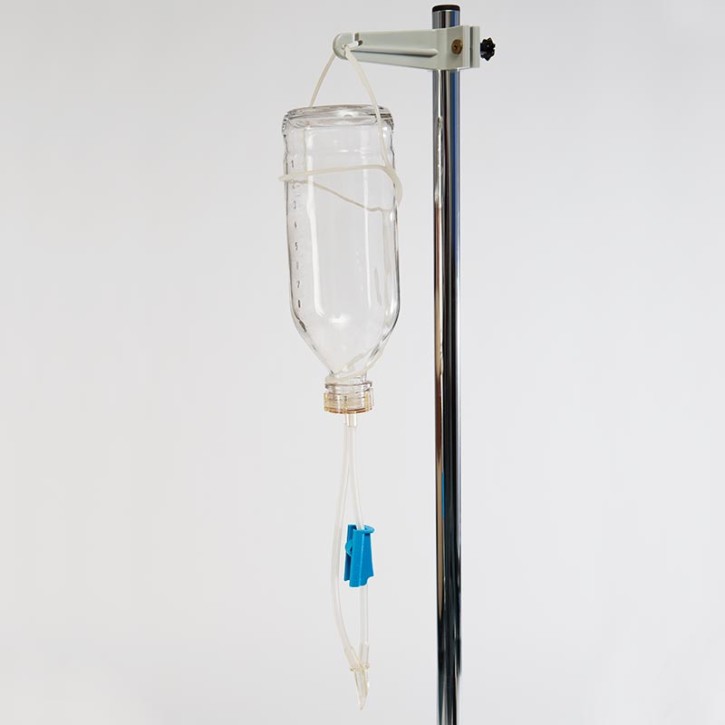

Continuous misting system max. 8 hours

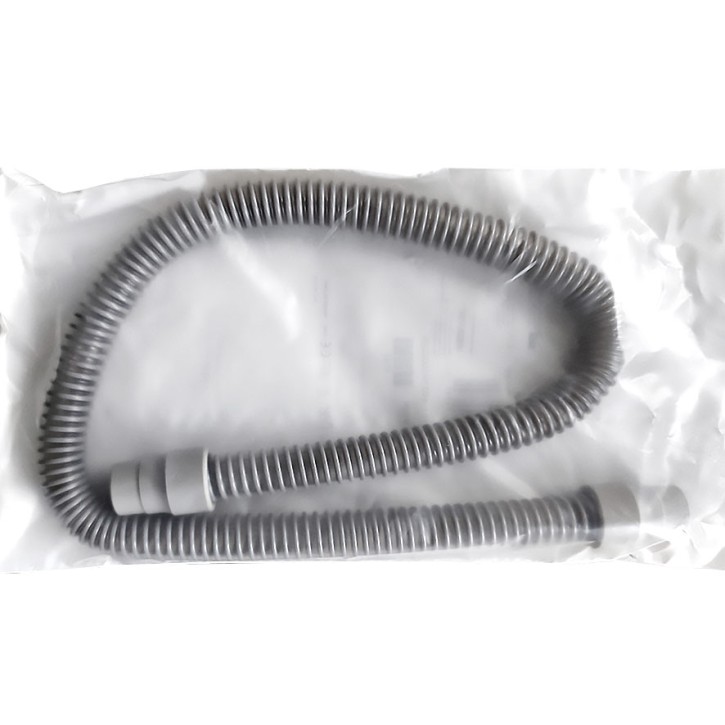

Heatable aerosol hose for heating the atomized liquid
Wall bracket or chassis for easy and safe operation
